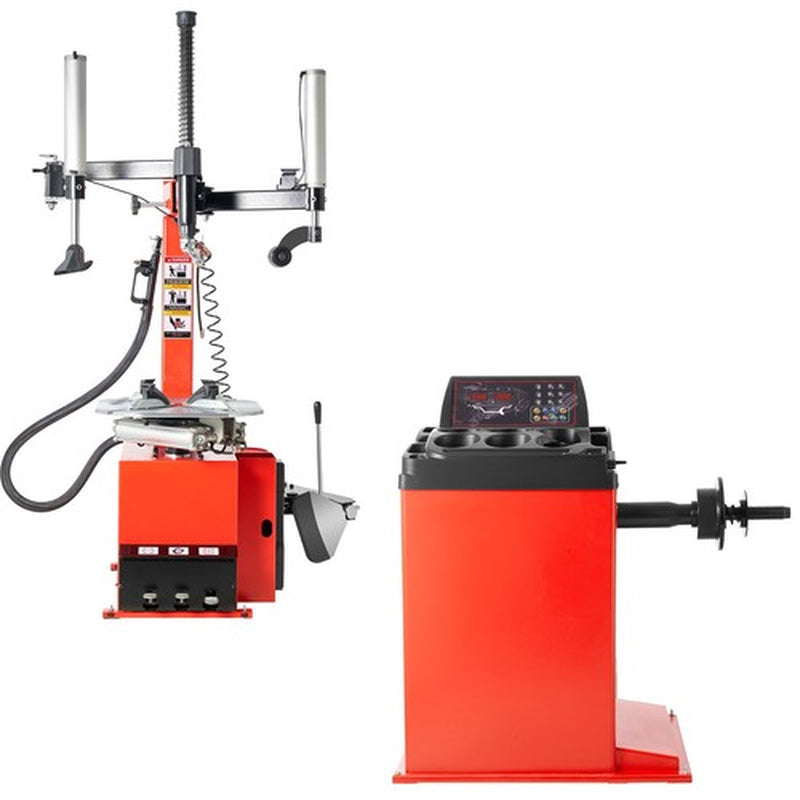

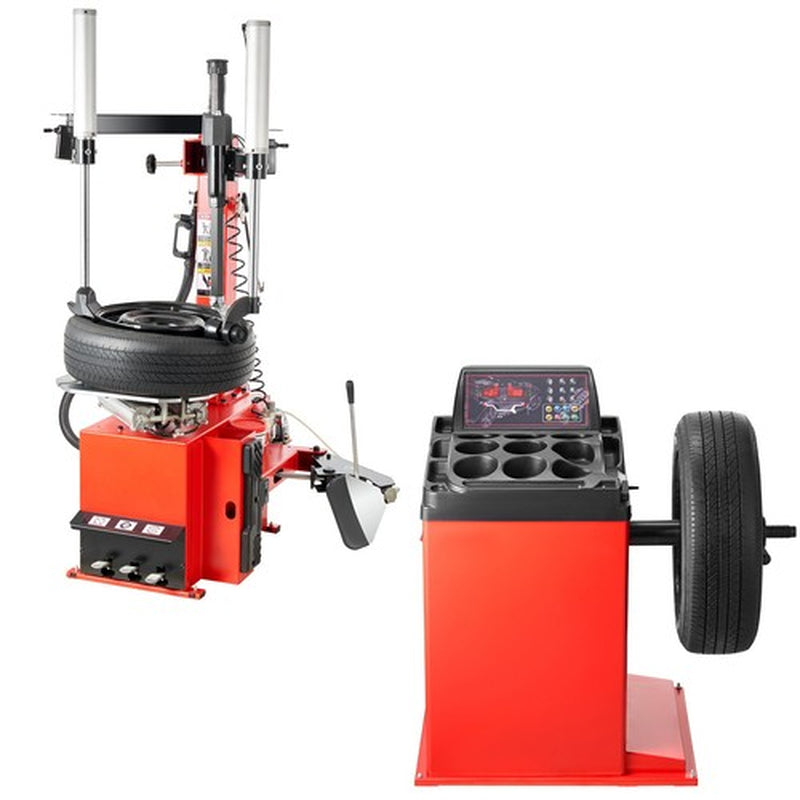

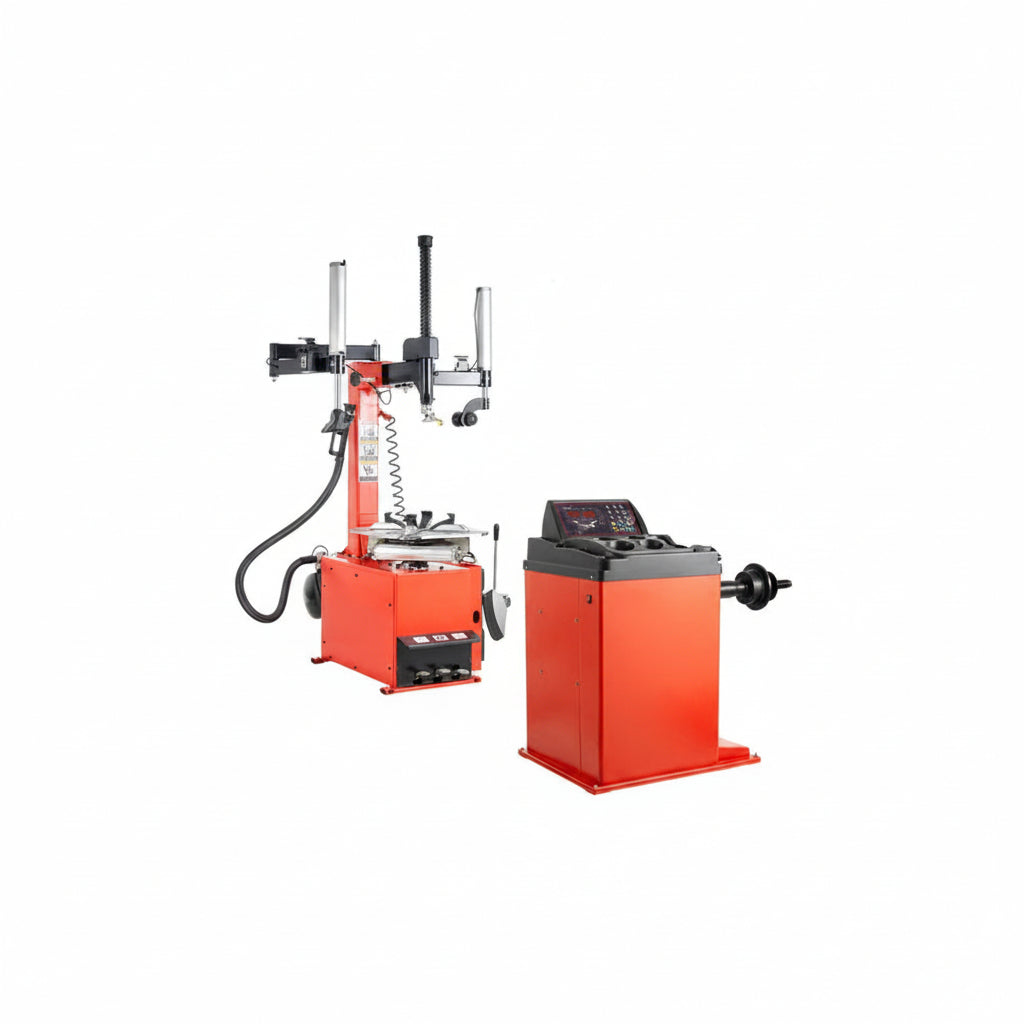

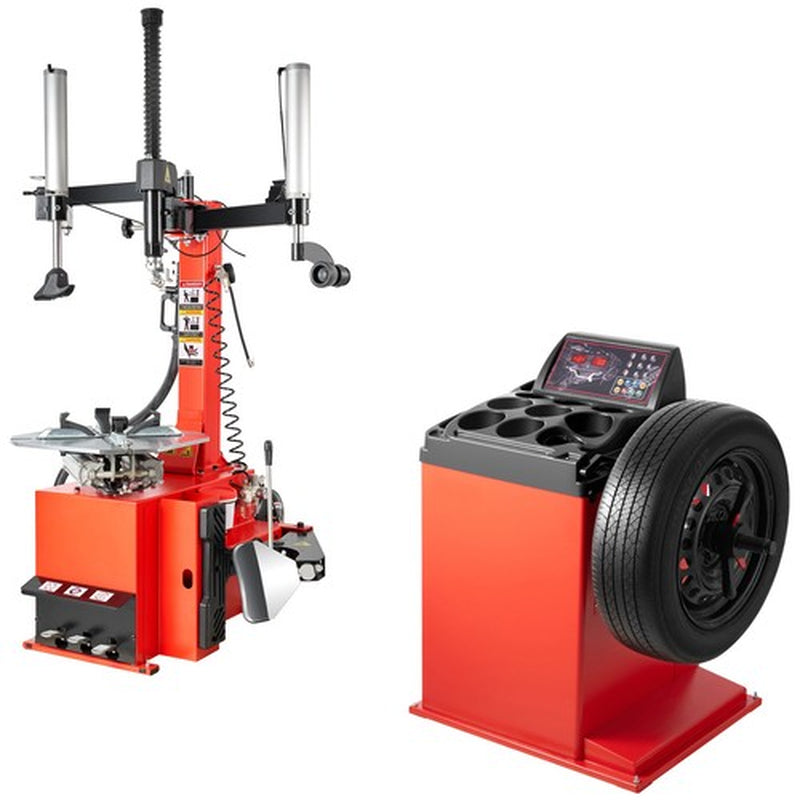

Tire Changer & Tire Balancer Set

Tire Changer & Tire Balancer Set designed for auto repair shops to efficiently mount, dismount, and balance tires. This set supports a wide range of rim diameters and includes an adjustable assist arm, upgraded protective pads, and precision balancing equipment.

Specifications

• Power Supply: 110V

• Outside Clamping: 12" – 24.4"

• Inside Clamping: 12" – 23.2"

• Max Wheel Diameter: 37.8"

• Max Wheel Width: 3-15"

• Bead-Breaker Force: 2500kgf

• Operating Pressure: 6-8bar

• Rim Diameter: 24"

• Rim Width: 1.5-18"

• Max Wheel Diameter: 1000mm

• Max Wheel Weight: 155 lbs

• Cycle Time: 8s

• Balancing Accuracy: -1g to +1g

• Includes: 4 Centering Cones

• Largest Truck Cone Diameter: 130mm

• Set: Tire Changer & Tire Balancer

Features

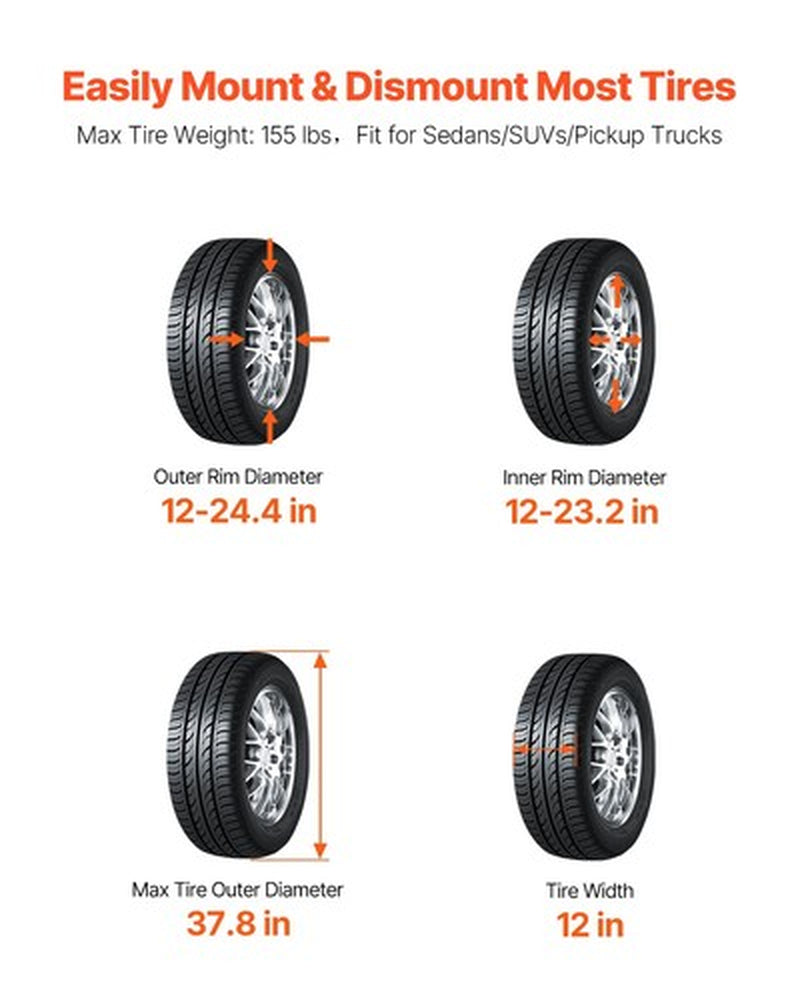

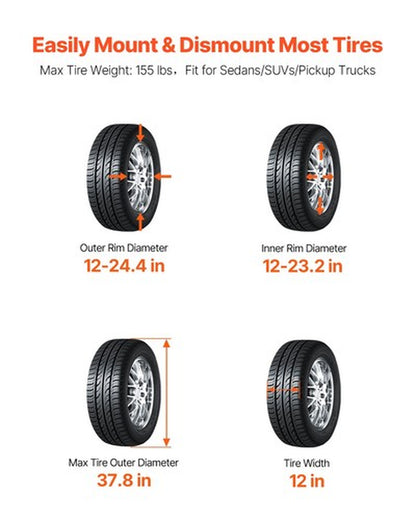

• Universal Tire Compatibility: Fits outer rim diameters of 12-24.4 in/304.8-620mm, inner rim diameters of 12-23.2 in/304.8-589.3mm, max tire outer diameter of 37.8 in/960mm, tire width of 3-13 in/76.2-330.2mm, and max tire weight of 155 lbs/70.4 kg.

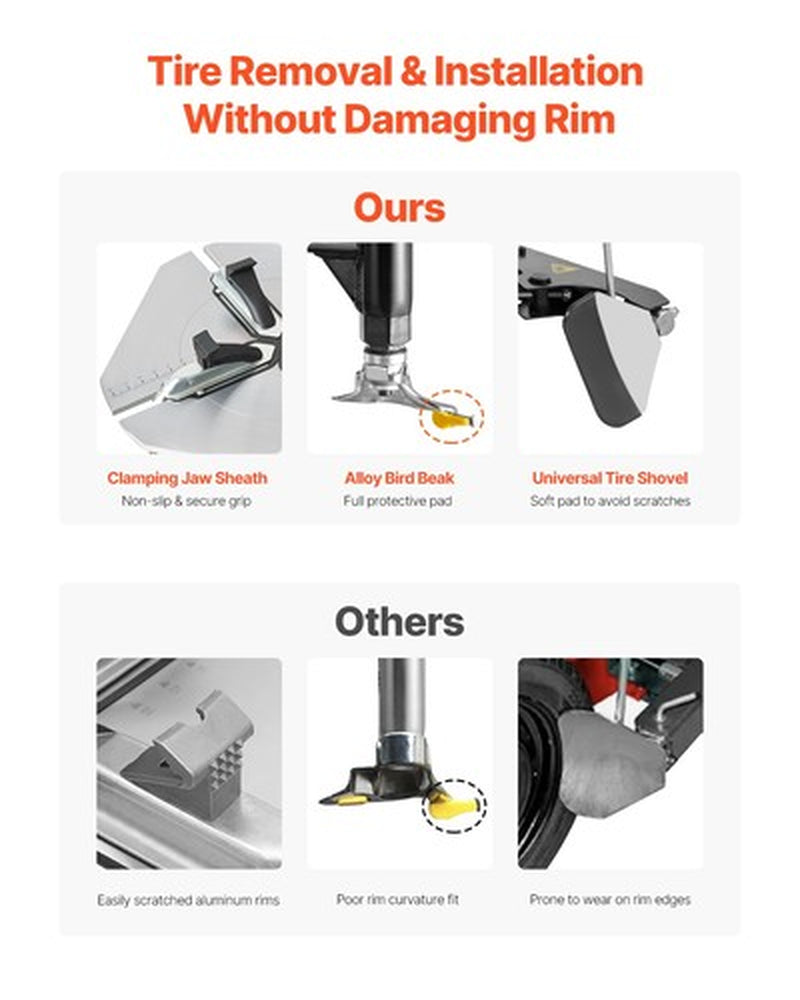

• Tire Safeguard: Upgraded clamping jaw covers increase friction with the rim. The universal tire shovel and bird beak design conform to the tire's curvature, with added padding on the surface.

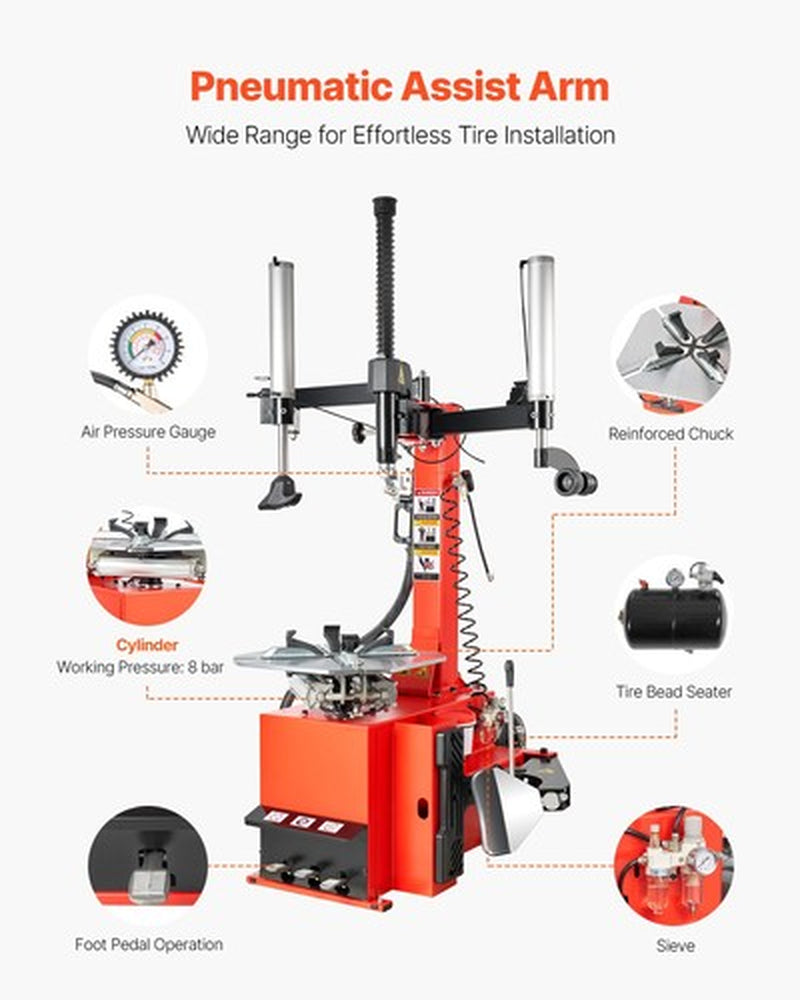

• Auxiliary Arm: The multifunctional auxiliary arm applies pressure to the tire surface, assists with separating the rim from the tire, and supports tire installation.

• Powerful Motor: The tire changer machine features a built-in 1.5HP motor. It is equipped with a 1.0Mpa inflation tank and pressure gauge and can be connected to a compressor for tire mounting, dismounting, and inflation.

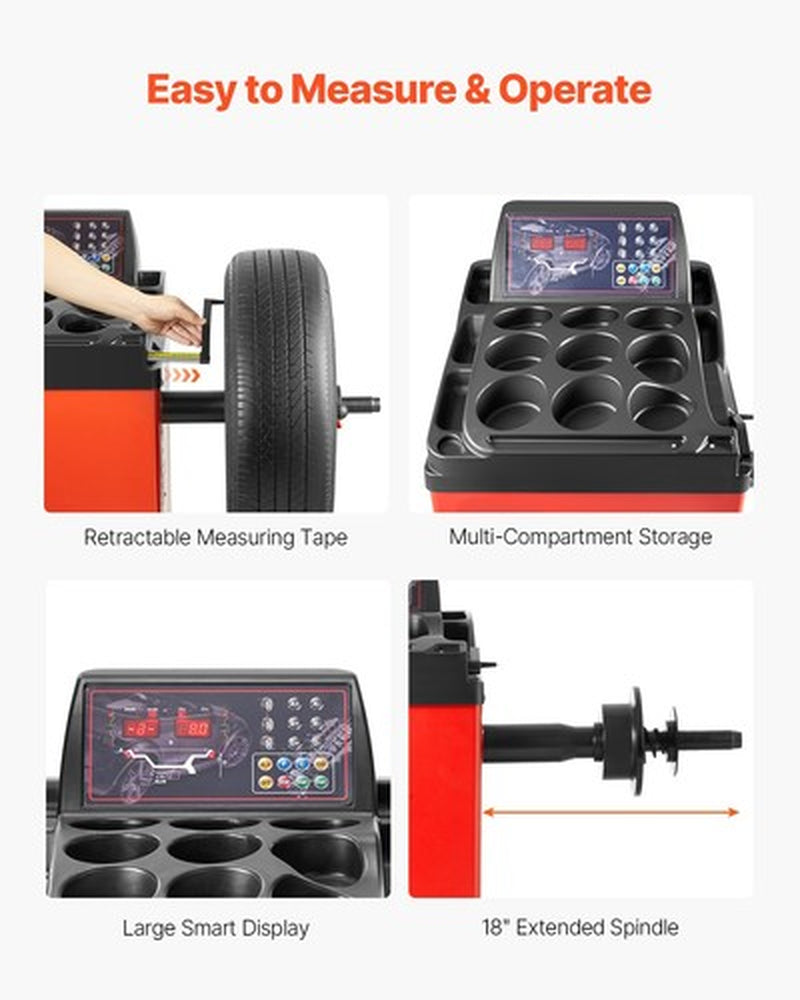

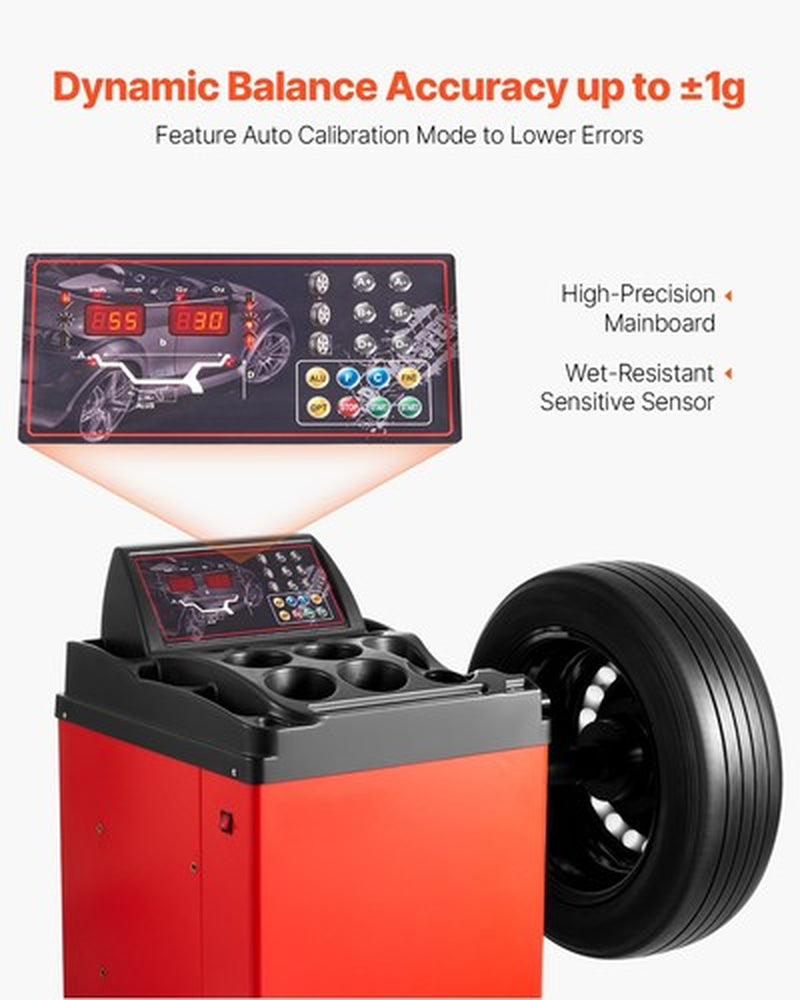

• Precision Measurement: The tire balancing machine features a wet-proof sealed sensor and precision algorithm board, with calipers and a retractable measuring tape for measurement and balancing adjustments.

• Adjustable Assist Arm: The assist arm is adjustable in height and rotation for handling different tire types.

Warranty

• Product: 12 months
